Introduction
A SIP trunk connects your business phone system to the outside world over the internet, carrying calls to customers, vendors, and staff without a single copper line. That convenience comes with a catch: a single trunk, provider, ISP, or PBX can become a single point of failure.
Voice outages aren't rare. NETSCOUT's 2024 UCaaS research found that 97% of respondents experienced at least one major UCaaS incident lasting several hours in 2023, with broad functionality affected, according to NETSCOUT's "Too Many Tickets, Too Little Time" report.
SIP trunking failover is the automatic rerouting of calls to a backup path when your primary route fails. This guide walks through failover architecture, configuration, monitoring, and testing so you can keep inbound and outbound calls up when something breaks.
Key Takeaways
- Reliable failover protects inbound and outbound calling, but only when the backup path is genuinely independent
- Build resilience at four levels—provider, network, PBX, and endpoint—or a single failure can still take calling down
- DNS/SRV routing, SBC policies, trunk priorities, QoS, and monitoring decide whether failover holds up in production
- Failover must be tested regularly and reviewed after any PBX, firewall, ISP, or carrier change
Why SIP Trunk Failover Matters and How It Works
A dropped voice connection hits differently depending on who's answering the phone. Sales teams lose deals mid-pitch. Contact centers watch queue times spike.
Healthcare front desks can't confirm appointments, and public-sector offices leave residents without a way to reach services they depend on. The real cost includes missed revenue, frustrated callers, and in some cases, safety risk.
Redundancy, Failover, and the Related Terms
These terms get used interchangeably, but they describe different things:
- Redundancy — backup infrastructure that exists but isn't necessarily active
- Failover — the automatic switch to that backup when the primary system fails
- High availability — the broader objective that failover helps achieve
- Disaster recovery — a documented plan for restoring critical systems after a major failure
- Load balancing — distributing traffic across multiple paths simultaneously, not the same as failover
- PSTN fallback — rerouting an IP call to the traditional phone network as a last resort when no IP destination is reachable

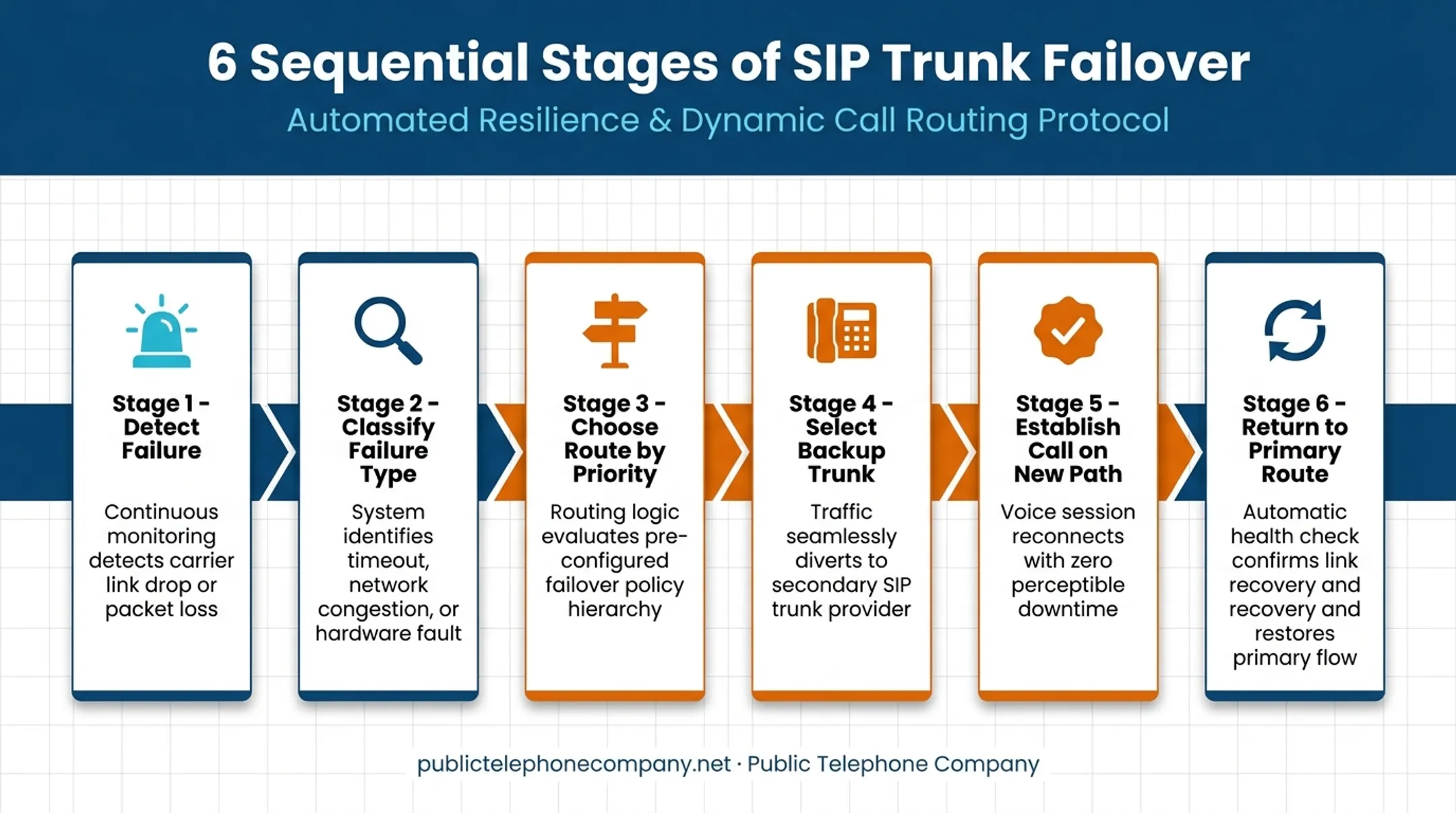

How the Failover Sequence Works
- The system detects a health signal failure or a failed call attempt
- It classifies the failure type
- It chooses a route based on configured priorities
- It selects a backup trunk
- It sets up the call on the new path
- Traffic returns to the primary route once that path is confirmed healthy
Inbound vs. Outbound Failover
Inbound and outbound failover do not behave the same way.
Inbound failover depends on number routing and registration state with the backup carrier. Caller ID preservation also matters so customers still recognize your business.
Outbound failover relies on trunk priority order at the PBX. Calls already in progress typically do not survive a mid-call failover, because the media path was tied to the failed connection.
Common Triggers
Failover conditions vary by PBX, SBC, router, and provider. Frequent triggers include:
- Provider errors or lost registration
- SIP timeouts and unreachable endpoints
- Packet loss or excessive latency
- Network or power failure
- PBX hardware failure
Designing a Resilient SIP Trunk Failover Architecture
Resilience has to be built at four separate layers. A backup trunk doesn't help you if your single ISP goes down or your PBX itself is unavailable.
- SIP provider infrastructure: carrier network diversity and geographic failover
- Business internet and power: independent circuits and backup power into the building
- PBX/SBC and firewall: the gear that routes, registers, and secures calls
- User endpoints: phones and softphones, plus how they re-register after a cutover
Choosing a Redundancy Model
| Approach | What It Offers | Trade-off |
|---|---|---|
| Single-provider redundancy | Simpler management, one point of contact | Shared carrier risk remains |
| Multi-provider redundancy | Carrier diversity, protects against outages at one provider | More complex configuration |
| Provider-plus-PSTN fallback | Last-resort calling if all IP paths fail | Traditional PSTN rates and limitations apply |
Network-Level Options
Dual ISP connections, active/standby routing, SD-WAN, cellular backup, and separate power sources all add resilience. The catch: those circuits must be genuinely independent. Two "backup" links that share the same last-mile fiber or upstream provider are still one failure point.
Routing Logic That Makes It Work
Failover behavior is governed by a stack of settings:
- DNS SRV records set priority and weight for preferred destinations
- Static destination priorities define fixed backup order
- SBC routing rules decide which route to try first and when to move on
- PBX trunk sequences determine the order trunks are attempted for outbound calls
Priority and weight settings directly affect which path gets traffic first and how load spreads across backups.
Compatibility Checklist
Before you trust a backup path, confirm it matches on:
- Codecs and transport protocols (UDP/TCP/TLS)
- Authentication methods and IP allowlists
- NAT behavior and RTP media handling
- Registration timers and re-registration after failover
- Dialing rules and caller ID presentation
- Emergency calling (911) configuration
Skip this check and a "working" failover can still deliver no audio, wrong caller ID, or failed 911 routing.
Implementing, Testing, and Monitoring SIP Trunk Failover

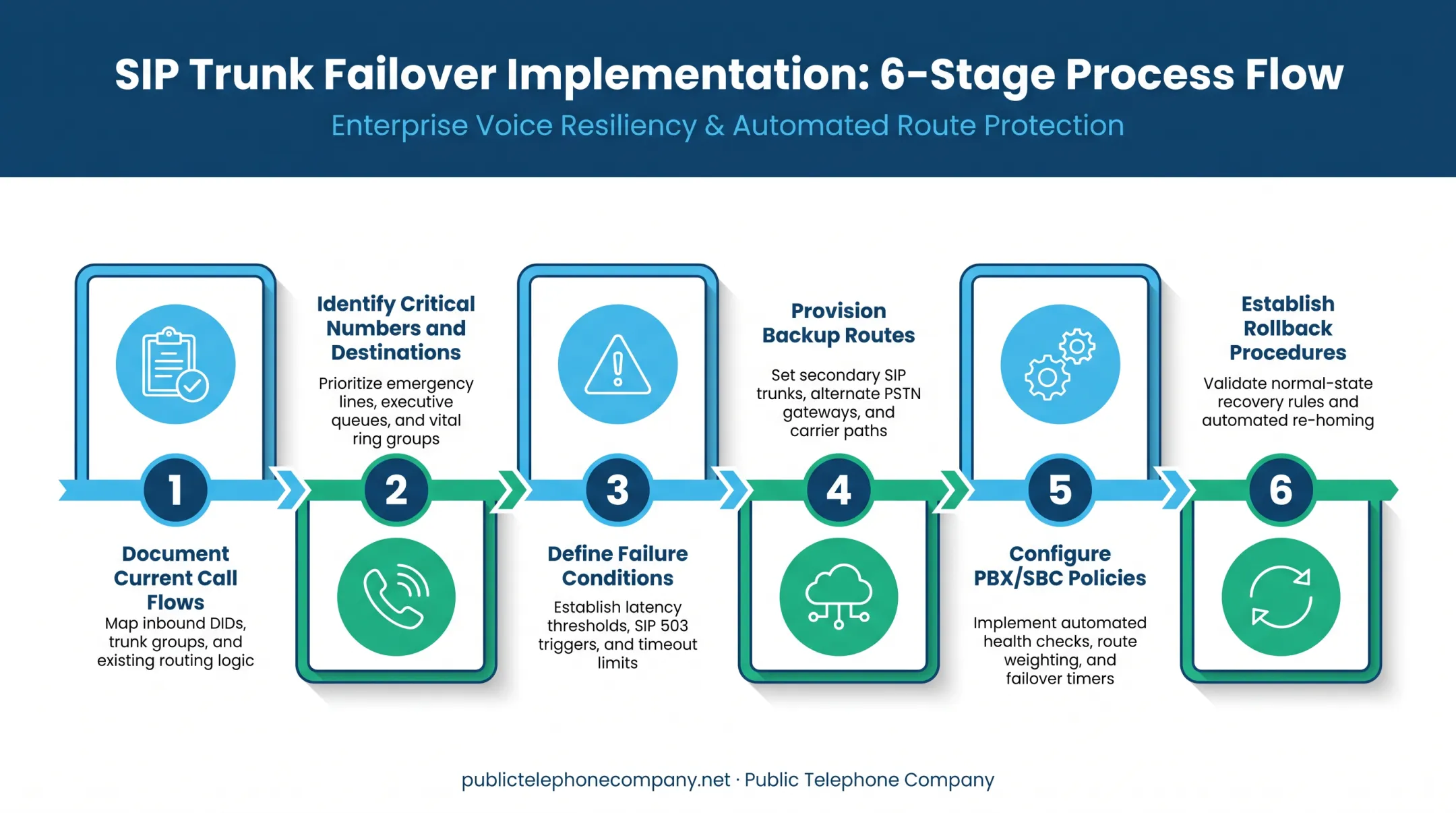

Getting failover live is a sequence, not a single setting toggle.
- Document current call flows — know what "normal" looks like before changing anything
- Identify critical numbers and destinations — main lines, emergency services, key departments
- Define failure conditions — what actually counts as a trunk being "down"
- Provision backup routes — with a second carrier or path, not a mirrored single point of failure
- Configure PBX/SBC policies — trunk order, retry intervals, health checks
- Establish rollback procedures — so restoring primary service doesn't create a new outage
Configuration Considerations
Watch trunk health checks, retry intervals, registration persistence, and how your firewall's SIP ALG handles signaling. Misconfigured ALG is a frequent cause of failed calls.
Apply the same standards on every backup path that you apply on the primary:
- Signaling and RTP access rules
- QoS settings matched to voice traffic
- Bandwidth headroom for failover load
- Toll fraud protections on secondary routes
Avoiding False Failovers
Your routing logic needs to distinguish a genuine trunk failure from normal call outcomes. A busy destination, a caller hanging up, or a rejected call shouldn't trigger a failover attempt — only real signaling failures or timeouts should.
What to Monitor
Track these signals continuously:
- Registration state
- SIP response codes
- Call setup success rates
- Answer-seizure performance
- Media quality (jitter, packet loss, latency)
Cisco's voice troubleshooting guidance uses jitter under 30 milliseconds and packet loss under 1% as measurement targets for healthy voice traffic, per Cisco's network audio troubleshooting documentation. Use figures like these as a starting benchmark, then compare against your own baseline.
Testing Plan
A real test plan covers more than "unplug it and see":
- Simulate a controlled provider failure
- Disconnect the ISP path
- Fail the firewall or PBX
- Interrupt power to critical gear
- Inject degraded network conditions (packet loss/latency)
- Verify inbound number routing and outbound caller ID
- Confirm emergency calling still routes
- Restore traffic back to the primary route
Document results, assign an owner, and set remediation dates for anything that doesn't work as expected. NIST's contingency planning guidance recommends testing on a documented schedule and after any significant system change, per NIST SP 800-84. That principle applies directly to voice infrastructure.
Common Failure Points and How to Evaluate a SIP Trunk Provider
Failover setups fail in predictable ways. Common configuration and registration gaps include:
- Both "redundant" trunks depending on one carrier
- Backup registrations that were never actually activated
- DNS caching delaying failover convergence
- Timeouts set too long to matter in practice
- Mismatched codecs between primary and backup paths
Path, media, and capacity problems show up just as often:
- Incorrect caller ID on failover calls
- One-way audio from NAT or SIP ALG interference
- Insufficient bandwidth on the backup connection
- Emergency routes that were never tested
Most of these failures trace back to architecture or support gaps you can spot before you sign. Use the checklist below to pressure-test providers.
Provider Evaluation Checklist
When comparing SIP trunk providers, look for clear answers on:
- Network and carrier diversity
- Inbound and outbound failover support
- PBX compatibility
- Number portability
- Monitoring visibility
- Escalation processes and documented SLAs
- Security controls and compliance responsibilities
- Technical support availability

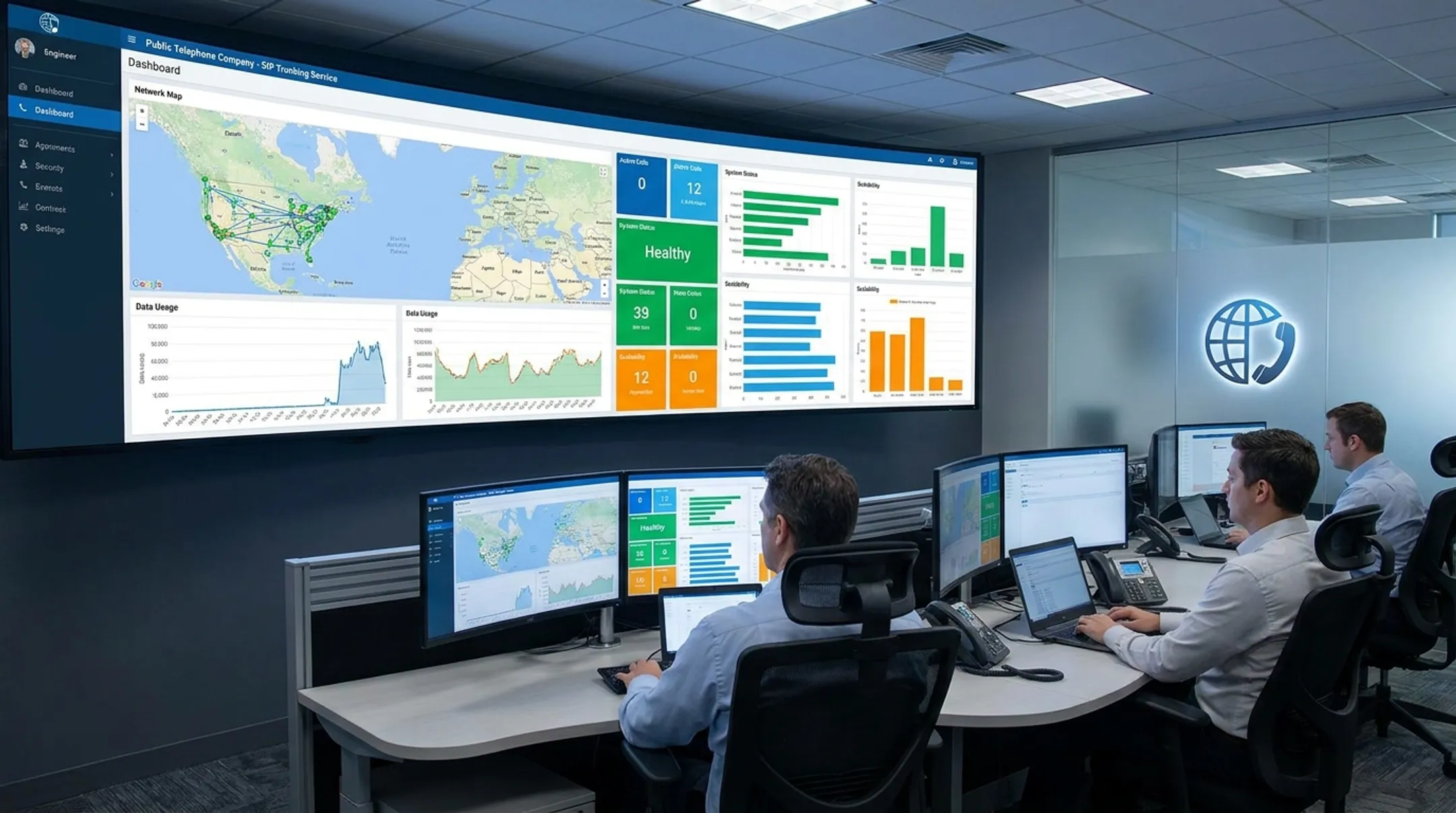

Public Telephone Company offers SIP trunking alongside cloud PBX, unified communications, and custom CRM integration, built to scale from small deployments up to 100,000+ users. When you evaluate failover design, monitoring access, and escalation paths, ask for specifics up front. 24/7 support is available at 877-314-4080.
Conclusion
SIP trunk failover is a layered business-continuity design: removing shared dependencies, configuring clear routing logic, monitoring service health, and testing every critical call path — including the ones you hope you never need.
If you're replacing legacy phone lines or connecting an existing PBX and want an affordable, scalable SIP trunking setup, talk to Public Telephone Company about your specific requirements.
Frequently Asked Questions
What is redundant SIP trunking and how does it work?
Redundant SIP trunking means having multiple independent SIP paths or infrastructure components available. When the preferred route fails, calls automatically move to an alternate path so service continues.
Is redundant SIP trunking reliable?
Reliability depends on genuine path diversity, correct PBX and network configuration, active monitoring, provider quality, and regular testing. Simply having a backup labeled "redundant" doesn't guarantee it works when needed.
What is the difference between SIP trunk failover and redundancy?
Redundancy is the presence of backup resources sitting ready. Failover is the automatic process that actually switches traffic over to those resources when a failure occurs.
Can SIP trunk failover protect against an internet outage?
Yes, if the business has a truly independent secondary connection, such as a second ISP or a properly configured cellular backup, with routing and firewall policies set up to handle voice traffic.
How often should a business test its SIP trunk failover plan?
Test on a documented schedule based on your risk tolerance and how often things change. Add extra tests whenever your provider, PBX, firewall, ISP, number routing, or emergency-calling setup changes.
